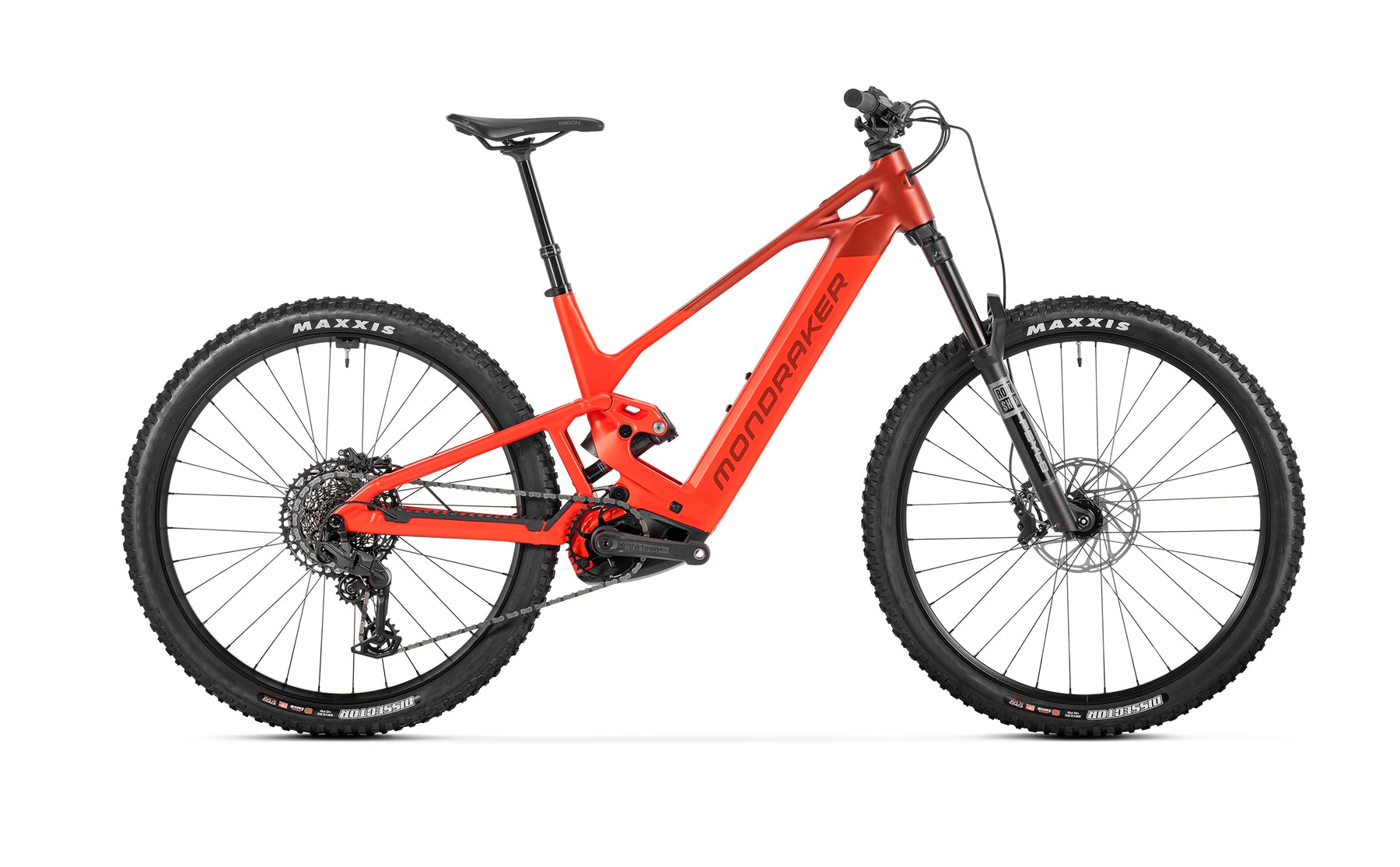

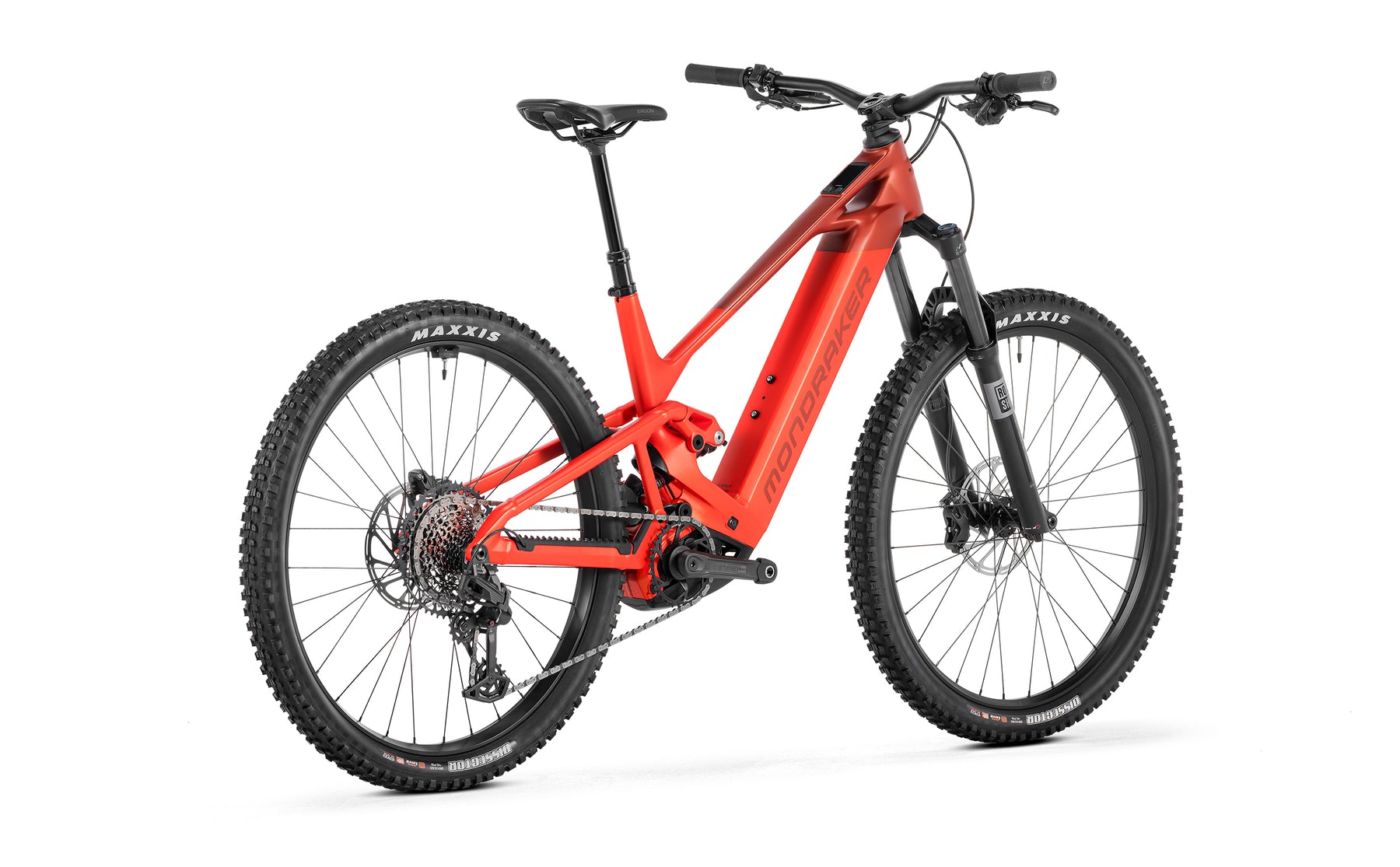

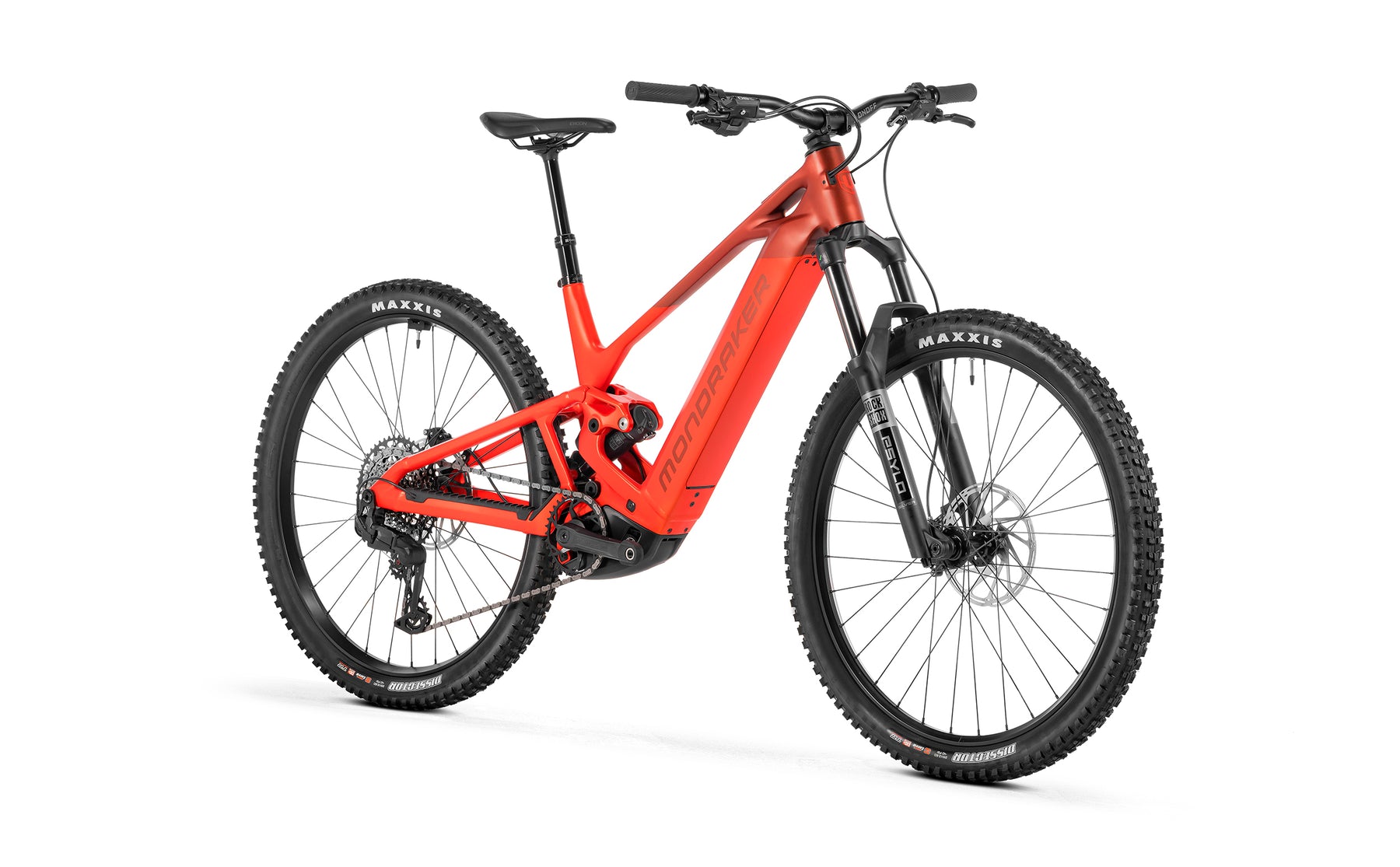

Frame
SCREE 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
RockShox Deluxe Select DebonAir, 165x45mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C37 compression, R85 rebound, 4 Tokens
Fork
RockShox Psylo Silver 29, 150mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200
Saddle
Ergon SMC10 Gel
Front brake
Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram DB6, tool reach adjust, lever pivot bushings
Rims
WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
WTB Straight gauge spokes & black brass locking nipples
Front hub
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts
Rear hub
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub
Front tire
Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead
Crankset
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings
Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur
Sram 70 Eagle, T-Type, 12s
Shift levers
Sram Trigger 70, 12s, T-Type Actuation
Casette
Sram XS-1270, 10-52T, 12s
Weight
25,8 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
